Acoustic Reflection Coefficient Analysis in Mold Compound Interfaces

Acoustic reflection coefficient analysis identifies sub-micron mold compound delaminations by detecting 180-degree phase inversions in ultrasonic signals.

30.09.26 10 min

Pulse

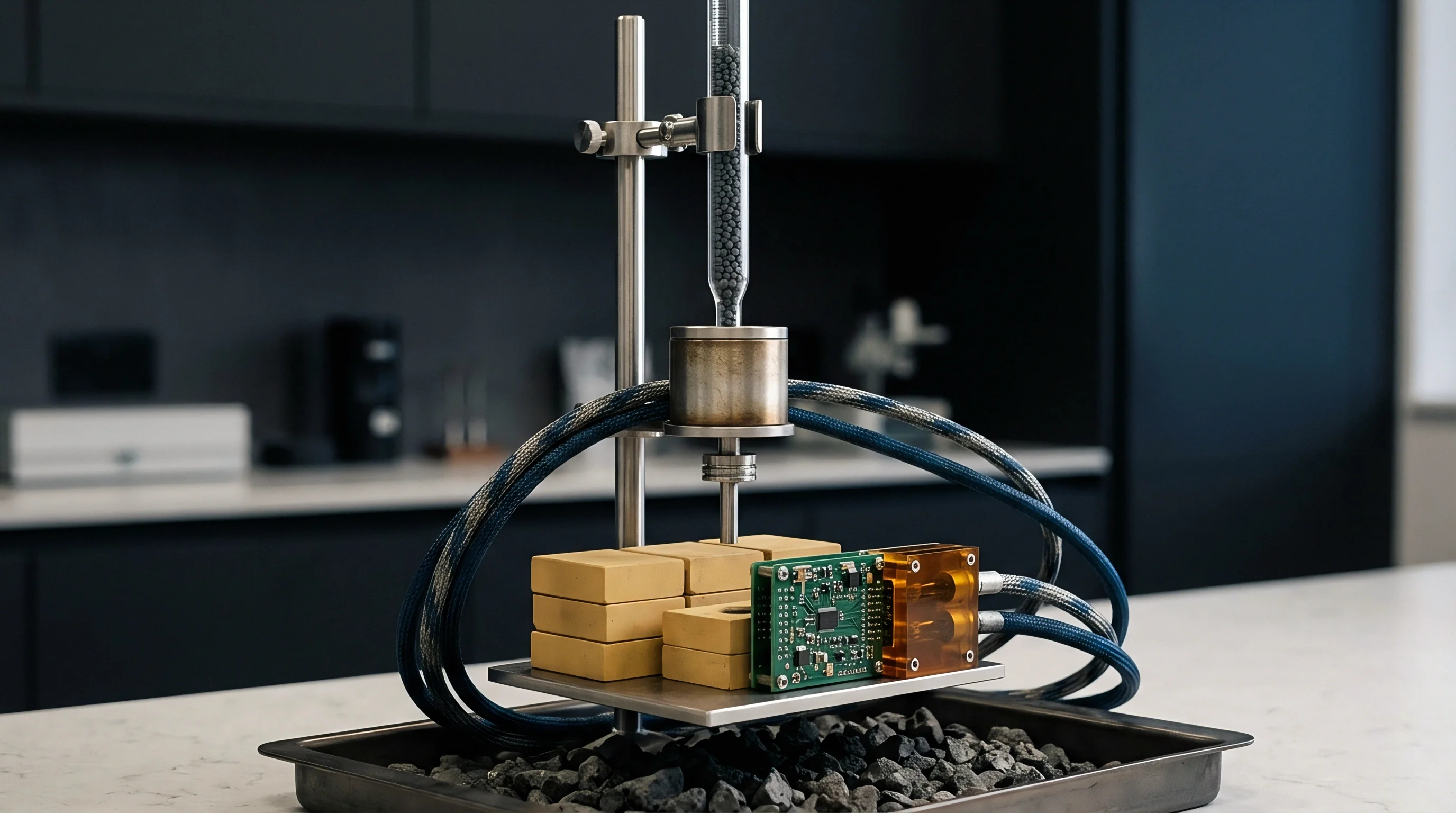

A populated printed circuit board assembly sits beneath a mechanical impact test rig mounted on a laboratory workbench with stacked bricks.

Acoustic Waves across Encapsulated Boundaries

Nondestructive examination of semiconductor packages relies on high-frequency sound energy propagating through heterogeneous material layers according to classical acoustic beam theory. When an acoustic pressure wave traveling through a liquid coupling medium encounters a solid polymer face, part of the acoustic energy passes into the package while the rest reflects back toward the transducer. Longitudinal sound waves then travel through the plastic body until hitting internal transitions such as the silicon die surface, die attach adhesive, wire bonds, or leadframe paddle.

Material boundaries present abrupt shifts in specific acoustic impedance, designated as Z, defined as the product of mass density, ρ, and longitudinal acoustic velocity, v:

Z = ρ · v

Units are expressed in mega-Rayleighs, where one mega-Rayleigh equals one million kilograms per square meter second. Typical epoxy mold compounds exhibit density values between 1.8 grams per cubic centimeter and 2.1 grams per cubic centimeter, with longitudinal acoustic velocities ranging from 2,800 meters per second to 3,800 meters per second. These values yield acoustic impedance figures from 5.0 mega-Rayleighs to 8.0 mega-Rayleighs.

Silicon features an acoustic impedance of approximately 19.7 mega-Rayleighs, while copper leadframes sit near 44.0 mega-Rayleighs.

Thin steel wire cables with metal crimp terminals pass through an open black clamp mounted on a geometric background.

Mathematical Derivation of Acoustic Reflection Coefficients

Evaluating signal amplitude across plastic packaging layers depends on calculating the acoustic pressure ratio, designated as R. At normal incidence, the acoustic reflection coefficient between material one, representing the incident medium, and material two, representing the target medium, derives directly from acoustic impedance mismatch:

R = (Z2 – Z1) / (Z2 + Z1)

When sound travels from mold compound into silicon, R evaluates to positive 0.533: 53.3 percent of the incident acoustic pressure reflects back to the transducer, while 46.7 percent transmits deeper into the package structure. Conversely, when sound encounters an internal air void or delamination gap, where air acoustic impedance equals 0.0004 mega-Rayleighs, the calculation yields an R value of negative 0.9998.

The acoustic energy reflection coefficient, RE, representing reflected acoustic power, equals the square of the pressure reflection coefficient:

RE = R2 = ((Z2 – Z1) / (Z2 + Z1))2

At a mold compound to air interface, RE approaches 1.00, or 99.96 percent power reflection. This high reflectivity turns an air gap into a near-perfect acoustic mirror that prevents sound energy from penetrating underlying features.

Table 1: Acoustic Properties and Impedance Parameters for Package Component Materials at 25 Degrees Celsius
Material Designation Density (g/cm³) Longitudinal Velocity (m/s) Acoustic Impedance (MRayl) Transducer Frequency Range (MHz)
Epoxy Mold Compound (Low Stress) 1.85 3,100 5.74 15 – 100
Epoxy Mold Compound (High Thermal) 2.05 3,600 7.38 15 – 75
Silicon Substrate (100) 2.33 8,430 19.64 30 – 230
Copper Leadframe (C194) 8.91 4,960 44.19 15 – 100
Silver Plating (Pure Ag) 10.49 3,650 38.29 30 – 100
Air Gap (Delamination Void) 0.0012 343 0.0004 15 – 230
Deionized Water Couplant 1.00 1,483 1.48 15 – 230

A larger difference in acoustic impedance between adjacent package layers returns a stronger reflected signal amplitude to the transducer.

Coupling

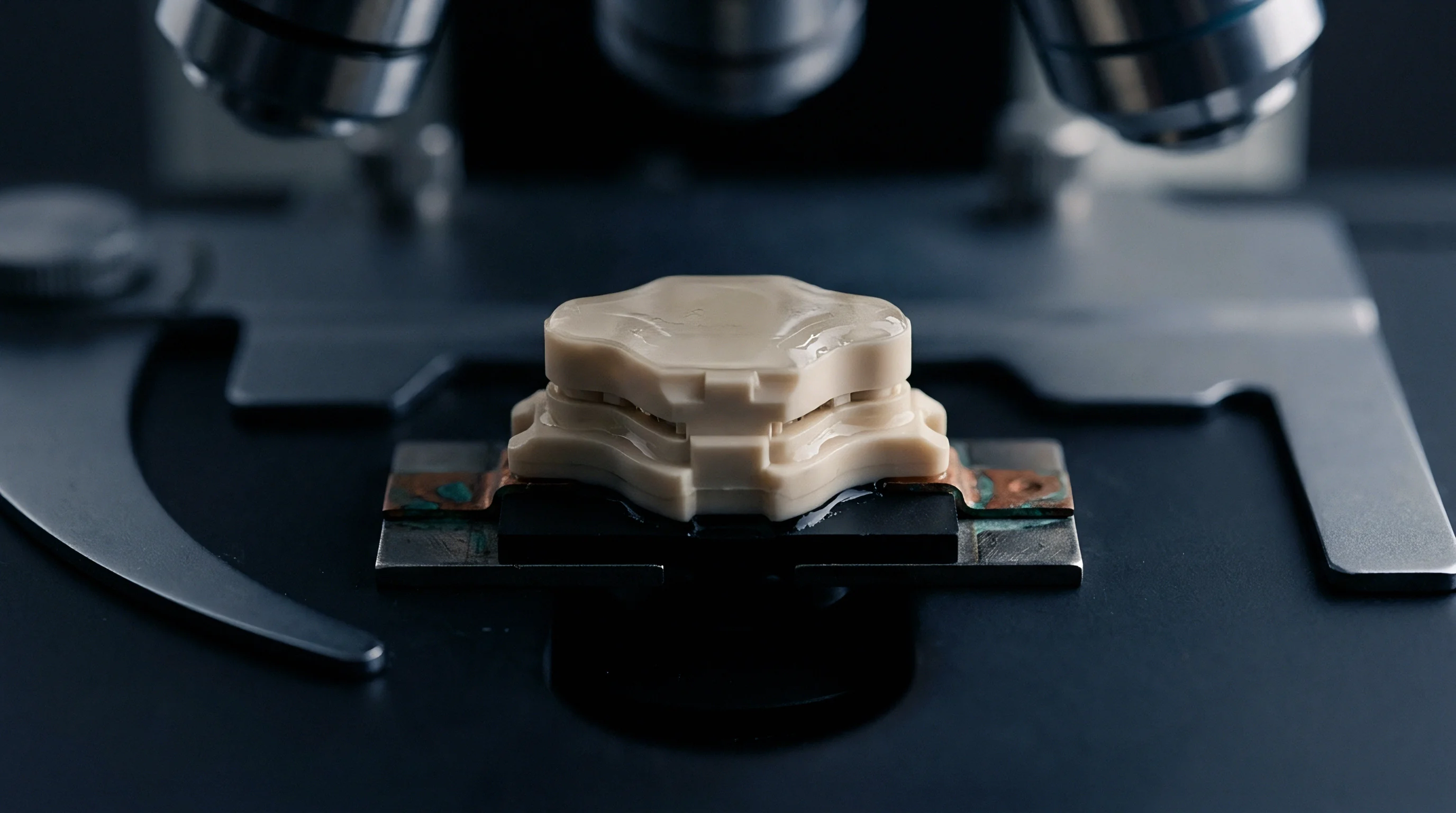

A molded electronic component housing sits on a microscope stage directly beneath the metal objective lenses for high magnification inspection.

Fluid Media and High Frequency Attenuation

Ultrasonic testing of plastic IC packages demands a liquid bath to eliminate air gaps between the sensor nozzle and the package surface. Deionized water serves as the standard transmission fluid because its acoustic impedance of 1.48 mega-Rayleighs matches transducer piezoelectric elements while presenting low signal attenuation.

Acoustic attenuation in filled epoxy resins increases exponentially with frequency, expressed by:

α(f) = α0 · f n

The exponent n typically ranges from 1.1 to 1.5 for silica-filled compounds. Formulated mold compounds contain fused silica filler particles, comprising 60 to 90 percent by weight, to match the thermal expansion coefficient of silicon. These filler particles cause Rayleigh and Mie acoustic scattering when transducer acoustic wavelengths approach particle diameter sizes of 5 to 50 micrometers.

A green substrate featuring complex conductive trace routing mounts modular tactile input components within a curved support frame structure.

Transducer Selection and Focal Geometry

Selecting sensor frequency balances spatial resolution against depth of acoustic beam penetration inside the resin package body. Low frequency transducers, operating from 15 megahertz to 30 megahertz, generate acoustic wavelengths near 100 to 200 micrometers in mold compound. This beam penetration passes through thick power module encapsulants exceeding three millimeters, at the expense of lateral spatial resolution.

High frequency transducers, operating from 100 megahertz to 230 megahertz, yield wavelengths down to 15 micrometers. This range provides spatial resolution below 20 micrometers needed to detect micro-delaminations in thin flip-chip ball grid arrays. High attenuation in thick packages restricts 230 megahertz scanning to depth horizons under 0.5 millimeters.

Filler particle size in mold compound sets the practical frequency ceiling before acoustic beam scattering overpowers internal echo reflections.

Internal void signatures stem either from ultrasonic bath micro-bubbles or from resin degassing during mold cure.

Phase

A machine die tool precisely forms a thin metallic sheet onto a darker substrate alongside a copper conductor strip.

Polarity Inversion and Interface Waveforms

Oscilloscope traces generated during ultrasonic package inspection display acoustic echo pulses as discrete voltage bursts along a time-of-flight axis. When sound reflects from a boundary where target impedance exceeds incident impedance, the reflected pressure wave maintains the phase polarity of the incident signal, and the initial peak on an A-scan display deflects in a positive voltage direction. At an air gap, the acoustic reflection undergoes a 180-degree inversion that flips the leading peak into negative voltage polarity.

Signal gating isolates reflections coming from specific package depths. The evaluation gate opens at a calculated time delay corresponding to the target depth and remains open for a time window matching the acoustic pulse duration. Mapping maximum positive peak amplitudes to bright white pixels and inverted negative peak amplitudes to saturated red pixels produces C-scan images where solid bonds appear gray and air delaminations highlight in vivid red.

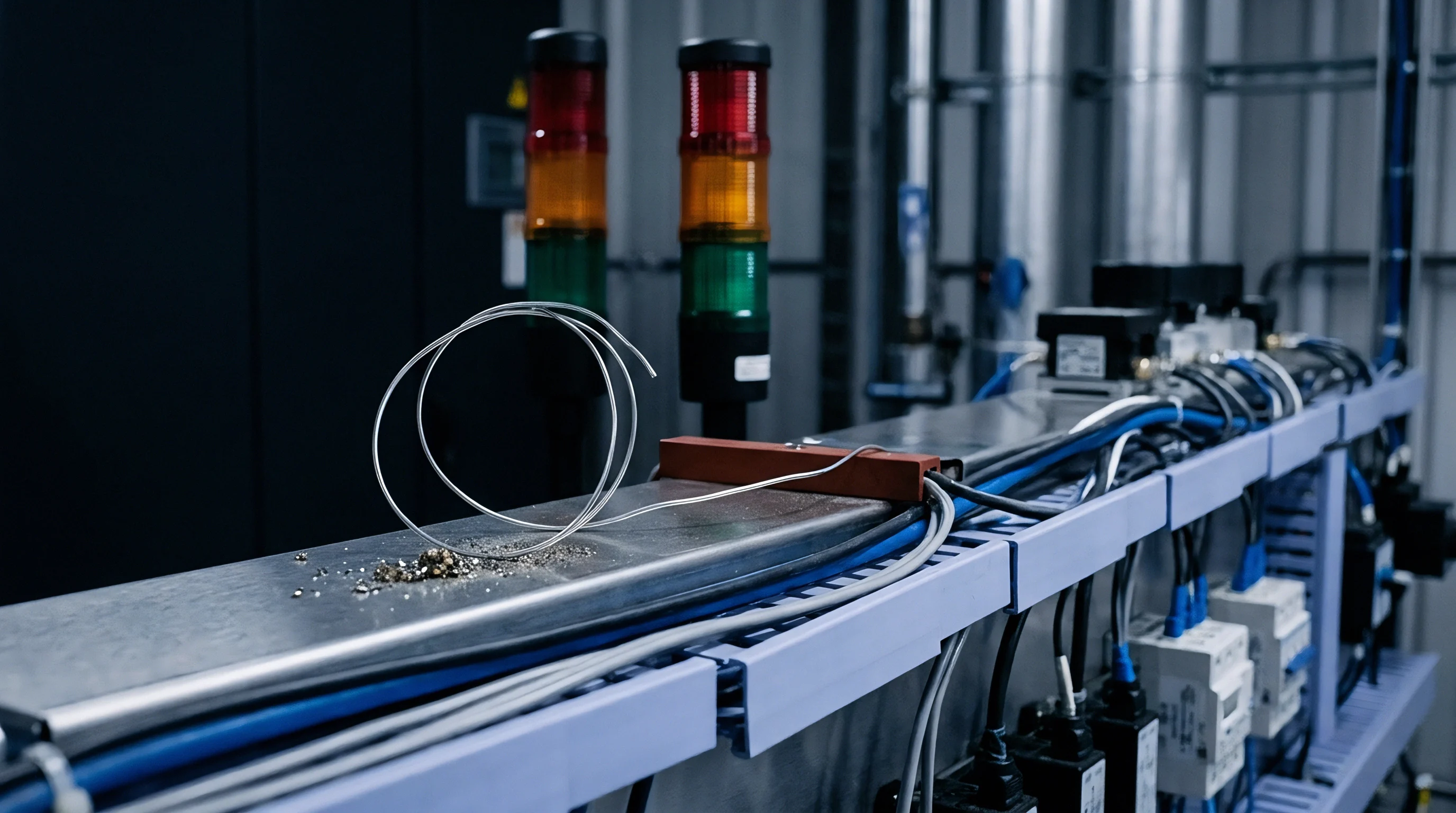

Loose metallic filament and debris resting on an industrial control cabinet surface signifies potential contamination in an electronic manufacturing environment.

Defect Categorization at Encapsulation Interfaces

Ultrasonic micro-imaging distinguishes physical layer separation from chemical contamination and internal material voids, identifying structural defects created during reflow soldering, moisture sensitivity testing, or thermal stress cycling.

  • Die Top Delamination occurs when mold compound separates from the silicon passivated surface, introducing an air gap that blocks sound transmission to lower die features.
  • Leadframe Paddle Disbond reflects a complete 180-degree phase flip at the resin-to-metal interface, caused by inadequate silver plating adhesion or organic contamination.
  • Die Attach Epoxy Voiding appears as localized acoustic reflections between silicon and substrate paddle, reducing thermal dissipation pathways from active junctions.
  • Bulk Compound Porosity manifests as distributed acoustic scattering points inside the molded resin body, created by incomplete vacuum evacuation during transfer molding.
IPC J-STD-020 Section 6.2 mandates package rejection if acoustic imaging reveals interfacial delamination exceeding six percent of the active die area.

Standard qualification contracts specifying J-STD-020 Class 3 acceptance enforce immediate batch rejection whenever acoustic phase inversion appears across more than five percent of leadframe wire bond stitch zones.

Discontinuity

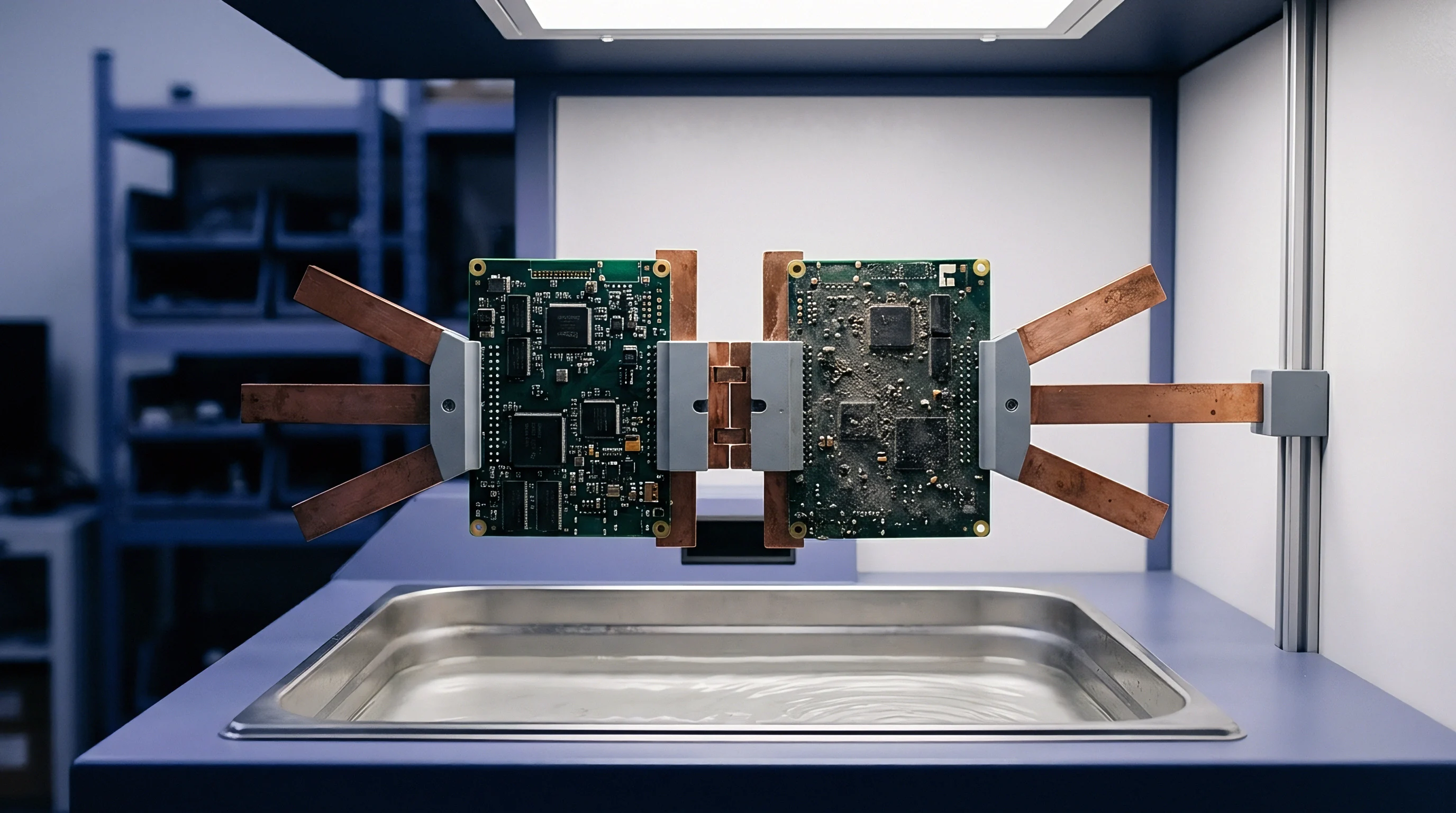

Two printed circuit boards mounted on copper brackets hang suspended above an empty stainless steel basin in a laboratory environment.

How Does Acoustic Reflection Reveal Sub-Micron Delamination?

Air gaps inside electronic packages reflect sound waves completely even when the gap thickness measures less than ten nanometers. Acoustic wave reflection depends on acoustic impedance mismatch rather than gap thickness, provided the opening exceeds continuum mechanics boundaries. Because air impedance equals 0.0004 mega-Rayleighs while mold compound sits near 6.0 mega-Rayleighs, the reflection amplitude coefficient reaches negative 0.9998.

Almost 100 percent of acoustic pressure reflects back toward the sensor, and these sub-micron gaps act as total acoustic barriers that cast distinct shadows over underlying features.

A wall mounted mechanical assembly stretches a viscous grey compound between rotating steel plates along a paneled industrial corridor.

Quantifying Delamination Energy Loss and Signal Amplitude

Calculating layer boundary reflections involves evaluating impedance ratios across the material combinations inside the packaged integrated circuit: epoxy mold compound (6.0 mega-Rayleighs), a silicon processor die (19.64 mega-Rayleighs), a copper leadframe (44.19 mega-Rayleighs), silver plating (38.29 mega-Rayleighs), and deionized water couplant (1.48 mega-Rayleighs).

Calculations yield specific pressure reflection coefficients and energy reflection ratios across intact and defective states:

For mold compound to silicon die interface:

R = (19.64 – 6.00) / (19.64 + 6.00) = 13.64 / 25.64 = +0.5320

RE = (0.5320)2 = 0.2830 (28.30 percent power reflected)

For mold compound to copper leadframe interface:

R = (44.19 – 6.00) / (44.19 + 6.00) = 38.19 / 50.19 = +0.7609

RE = (0.7609)2 = 0.5790 (57.90 percent power reflected)

For mold compound to internal air delamination:

R = (0.0004 – 6.00) / (0.0004 + 6.00) = -5.9996 / 6.0004 = -0.99987

RE = (-0.99987)2 = 0.99973 (99.97 percent power reflected)

For mold compound to water-filled moisture gap:

R = (1.48 – 6.00) / (1.48 + 6.00) = -4.52 / 7.48 = -0.6043

RE = (-0.6043)2 = 0.3651 (36.51 percent power reflected)

The amplitude contrast between an intact silicon interface (positive 0.5320) and an air delamination (negative 0.99987) equals 1.53187 normalized units with total phase reversal. This signal separation allows unambiguous automated defect classification.

Table 2: Calculated Reflection Coefficients and Reflected Energy Ratios across Packaging Material Interfaces
Interface Material Transition Incident Impedance (MRayl) Target Impedance (MRayl) Pressure Reflection Coefficient (R) Reflected Energy Ratio (R²) Reflected Signal Phase Polarity
Mold Compound to Silicon Die 6.00 19.64 +0.5320 28.30% In-Phase (Positive)
Mold Compound to Copper Leadframe 6.00 44.19 +0.7609 57.90% In-Phase (Positive)
Mold Compound to Silver Plating 6.00 38.29 +0.7291 53.16% In-Phase (Positive)
Mold Compound to Air Void 6.00 0.0004 -0.99987 99.97% Inverted (Negative)
Mold Compound to Water Ingress Gap 6.00 1.48 -0.6043 36.51% Inverted (Negative)
Silicon Die to Die Attach Epoxy 19.64 3.50 -0.6975 48.65% Inverted (Negative)

Executing an ultrasonic interface evaluation follows a structured line qualification protocol:

  1. Align the high-frequency ultrasonic transducer focal point to the target leadframe interface using a polished copper reference coupon.
  2. Set the receiver amplifier attenuation to position the front-surface mold compound signal at eighty percent full screen height.
  3. Position the electronic time window gate across the expected interface arrival time with a duration equal to one full cycle of the acoustic pulse.
  4. Initiate a high-density X-Y raster scan using five-micrometer step spacing across the package surface area.
  5. Assign positive phase reflection amplitudes to white scale intensity values and negative phase reflections to red signal values.
An air interface beneath epoxy mold compound reflects 99.97 percent of incident acoustic energy while reversing signal phase polarity by exactly 180 degrees.

Establishing qualification criteria for encapsulant lines involves monitoring specific process signals:

  • Transducer Bandwidth Matching specifies transducer frequency based on encapsulant filler particle size to prevent acoustic Rayleigh scattering from masking defects.
  • Focal Plane Tracking maintains exact acoustic focus on warped package substrates using real-time Z-axis auto-focusing algorithms.
  • Couplant Water Conditioning filters bath water through 0.2-micrometer particulate filters and continuous degassers to prevent micro-bubble acoustic reflections.
  • Automated Gate Tracking dynamically adjusts time-of-flight evaluation gates to accommodate variations in mold compound thickness across production lots.

Misinterpreting inverted acoustic phase signals as mold compound density variations allows delaminated ICs to enter SMT assembly, where reflow heat expands trapped air into catastrophic package popcorn cracks.

Margin

A green rigid-flexible printed circuit board undergoes standardized mechanical stress tests inside a specialized benchtop fixture within a modern assembly lab.

Line Integration and High Throughput Screening

Implementing ultrasonic inspection in production assembly lines involves balancing defect detection capability against line cycle time. A full high-resolution acoustic raster scan using a 100 megahertz transducer and a 10 micrometer grid step across a 35 millimeter square BGA package takes approximately 45 seconds per component. In high-volume automotive microcontroller assembly, such scan times exceed line pacing limits.

Automated micro-imaging systems counter this by using multi-transducer array heads or strip-level immersion trays to process 16 to 32 packages simultaneously.

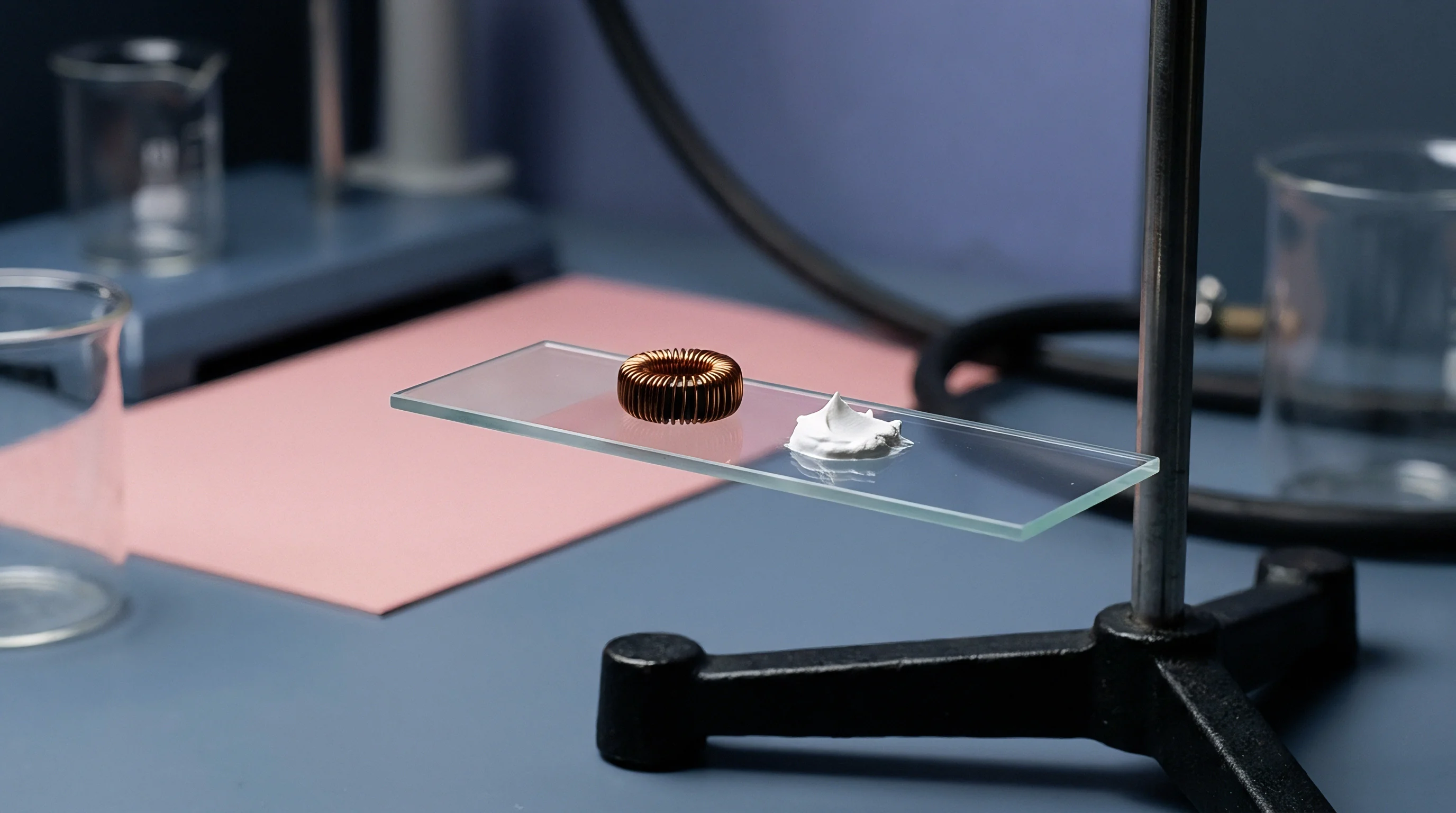

A toroidal inductor and a sample of white paste sit on a glass slide, positioned on a laboratory bench.

Release Records and Escapes Prevention

Assembly release records include ultrasonic reflection data prior to approving new resin formulations or leadframe plating suppliers. Line qualification relies on statistical sampling plans tied to component criticality: Class 3 medical and aerospace ICs demand 100 percent acoustic screening post-molding and post-reflow simulation, whereas commercial consumer devices utilize AQL 0.65 Level II sampling to monitor mold compound adhesion trends.

Table 3: Production Throughput and Defect Resolution Matrix for Ultrasonic Screening Methods
Inspection Mode Transducer Configuration Raster Step Size (μm) Scan Time Per Package (s) Minimum Defect Size (μm) Production Line Integration
Offline Engineering Diagnostics Single 230 MHz Focused 5 120 5 Sample Audit / Failure Analysis
Inline Tray Batch Screening Quad 100 MHz Array 25 8 25 100% Automotive qualification
Strip Level Fast Raster Dual 50 MHz Array 50 2.5 50 AQL Lot Acceptance Testing
High-Speed Acoustic Gate Audit Single 30 MHz Wide-Beam 100 0.8 100 Leadframe Disbond Screening
Optical inspection tools miss buried interfacial disbonds that subsequent thermal reflow expands into complete electrical open circuits.

Whether inline acoustic imaging can achieve sub-five-second per-die scan speeds without reducing acoustic transducer signal-to-noise ratio remains a subject of ongoing development across semiconductor test equipment vendors.

Nomenclature

Spatial Resolution

Imaging Capability ~ Optical systems define the smallest distance between two distinguishable objects within a captured frame.

Epoxy Mold Compound

Polymeric Encapsulation ~ Thermosetting polymer powder serves as the primary protective envelope during semiconductor packaging operations, surrounding wire-bonded dies within heated steel cavities under high clamping pressure.

Ultrasonic Gating

Time Windowing ~ Non-destructive acoustic microscopy systems isolate specific internal material interfaces by capturing reflected sound pulses within precise time delay intervals.

Phase Polarity

Signal Alignment ~ Acoustic waveforms undergo a shift in direction or orientation when reflecting off boundary layers with different acoustic impedances.

Reflection Coefficient

Interface Property ~ A mathematical ratio measures the amplitude of a reflected wave relative to the incident wave at an interface between two distinct acoustic or electromagnetic media.

Acoustic Impedance Mismatch

Boundary Reflection ~ Boundary behaviors at internal material junctions dictate the behavior of scanning acoustic microscopy when inspecting electronic packaging.

Deionized Water Couplant

Acoustic Transmission ~ Ultrasonic scanning of submerged electronics components requires a fluid acoustic transmission medium with controlled ionic conductivity and negligible acoustic attenuation.

Acoustic Micro-Imaging

Diagnostic Method ~ High frequency ultrasound provides a means of non-destructive internal inspection for electronic components.

Acoustic Impedance

Wave Boundary ~ Acoustic wave opposition inside a material defines the resistance met by high-frequency sound energy propagating across internal medium boundaries.

Acoustic Velocity

Sonic Velocity ~ Wave propagation speed through a dielectric substrate determines the timing precision within high frequency signal traces.

Acoustic Attenuation

Acoustic Coupling ~ Sound wave transmission loss across internal circuit board laminates and mounting interfaces relies on acoustic attenuation to prevent high frequency vibration from exciting mechanical resonance in sensitive surface mount components.
